FRP Epoxy / Polyester / SMC Sheets


These Laminated sheets are made from Silane Treated Fibre Glass Cloth & different type of Resins as a bonding medium. By proper selection of cloth and specific resin, we get improved mechanical & electrical properties.

Application :
Epoxy : Heavy duty transformer, Dry transformers, Control Panels, Switch Gears etc. depending on end use.


Technical Specification :

Sr.
No.

Parameter
Epoxy Sheet
EP2 EP3
SMC Sheet
1  Specific gravity
1.7 1.8
1.7
2  Tensile Strength, N/mm2
250 350
110
3  Cross Braking Strength, N/mm2
350 440
150
4  Compressive Strength, N/mm2
360 470
380
5  Water absorption after 24 hrs, Immersion in water at 200 c, %
0.15 0.15
0.2
6  Electric Strengh, AC (proof voltage) Flate wise in oil at 900 c  kv/mm
12 kv/mm 15 kv/mm
14 kv/mm
7  Martens heat Distortion Temperature, 0C
160 170
155
8  Thickness available
0.80 mm to
60mm
0.20 mm to
100mm
1mm to 50mm

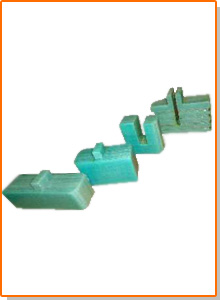

FG Coil Support Block
FG Coil Support Block

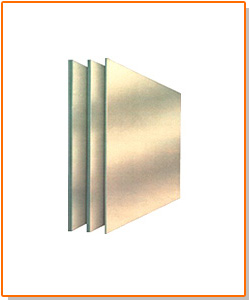

FG Epoxy Laminates
FG Epoxy Laminates

Availability :

Epoxy : 0.2 to 100mm size thickness / 1m x 1.2m, 1m x 1.8m, 1m x 1m, 1.2m x 1.2m size

SMC : 1 to 50mm size thickness / 1m x 1.2m, 1m x 1.8m, 1m x 1m, 1.2m x 1.2m sizr
